标准
JIS B1181-2014 .pdf |
名称

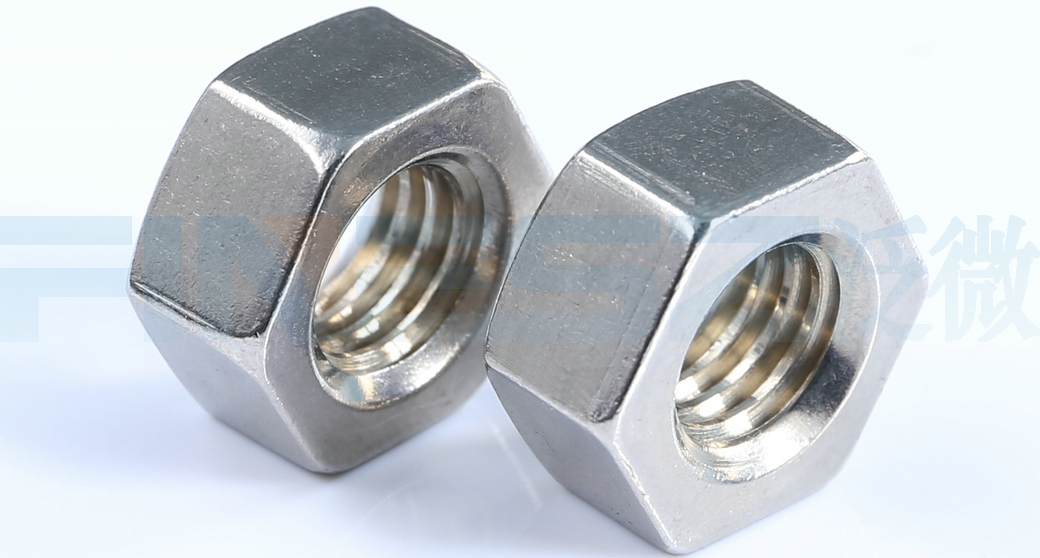

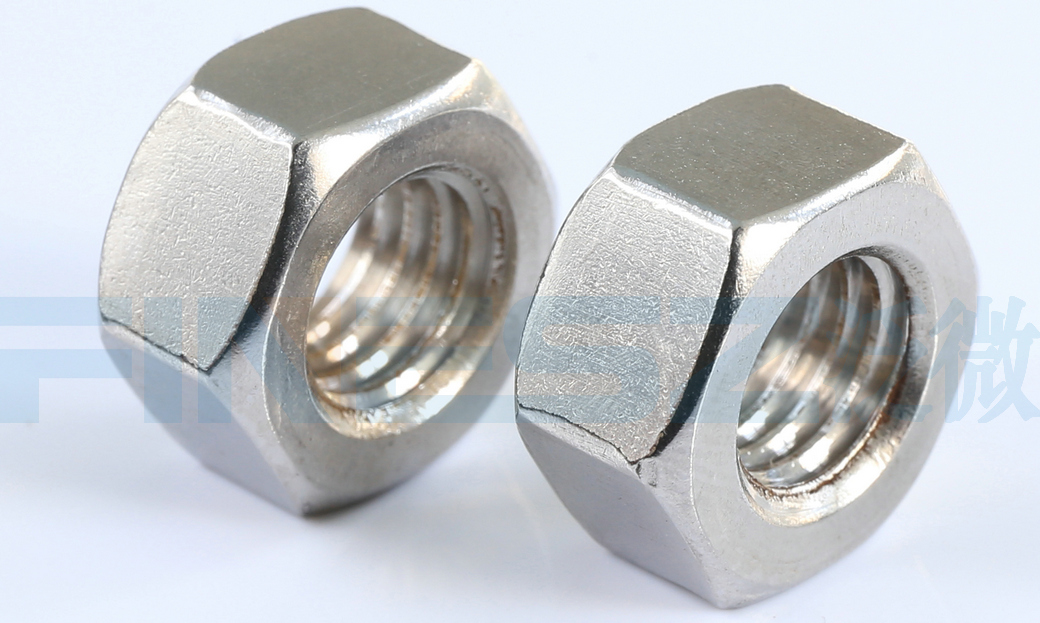

日标六角螺帽 |
英文名
Hex Nut |
近似标准
JIS B1181-2004.pdf |
表面
本色，钝化，电镀... |
|
性能等级 A2-50 A2-70 A4-70 A4-80 4.8 6.8 8.8 10.9 12.9
|
应用领域
通用 |
|
JIS B 1181规范日标六角螺帽系列的标准，类似于国标GB/T6170或德标DIN934。本页介绍的是JIS B 1118:2014标准之表3表4部分，即1型六角粗牙螺母。也是最常用的日标螺母。
标准原文档：JIS B1181-2014 .pdf
替代标准：JIS B1181-2004.pdf(旧)

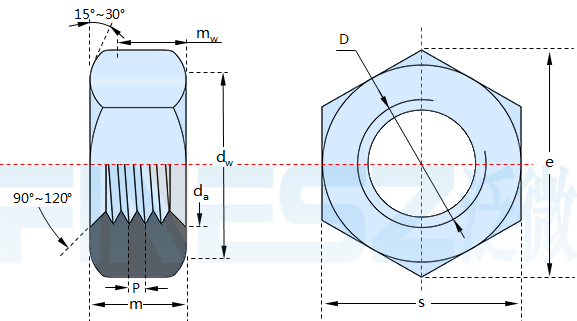

图纸：

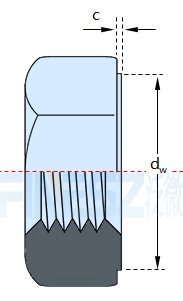

;若螺帽型式为单倒角，图纸参考:单倒角型式
尺寸表（单位：MM)
| 螺纹规格 d | |
| P | 螺距 |
| c | 最大值 |
| 最小值 | |
| da | 最大值 |
| 最小值 | |
| dw | 最小值 |
| e | 最小值 |
| m | 最大值 |
| 最小值 | |
| mw | 最小值 |
| s | 最大值=公称 |
| 最小值 | |
| M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 |
| 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 |
| 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| 1.84 | 2.3 | 2.9 | 3.45 | 4 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | 56.2 | 60.5 | 64.8 | 69.1 |
| 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 |
| 2.4 | 3.1 | 4.1 | 4.6 | 5 | 5.9 | 6.9 | 8.9 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.9 | 27.7 | 31.4 | 33.3 | 38 | 42.8 | 46.6 | 51.1 | 55.9 | 60 | 64.7 | 69.5 | 74.2 | 78.7 | 83.4 | 88.2 |
| 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 105 |
| 1.3 | 1.6 | 2 | 2.4 | 2.8 | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 | 45 | 48 | 51 |
| 1.05 | 1.35 | 1.75 | 2.15 | 2.55 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | 43.4 | 46.4 | 49.1 |
| 0.8 | 1.1 | 1.4 | 1.7 | 2 | 2.3 | 3.5 | 3.9 | 5.2 | 6.4 | 8.3 | 9.7 | 11.3 | 12.1 | 13.5 | 14.5 | 16.2 | 18 | 19.4 | 21.9 | 23.5 | 25.4 | 25.9 | 27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.3 |
| 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 |
| 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 |
