标准
DIN934-1987.pdf |
名称
六角螺母 |
英文名
Hex Nut |
近似标准
GB/T 6170.pdf、ISO4032-2012.pdf |
表面
本色，钝化，电镀... |
|
性能等级 A2-50 A2-70 A4-70 A4-80 4.8 6.8 8.8 10.9 12.9
|
应用领域
通用 |
|
DIN934六角螺母在机械设计、汽车、建筑和其他工业领域有着广泛的应用，其规格与几乎遍历了所有机械螺纹尺寸，是最常用的紧固件之一，也是结构最为简单的紧固件之一。
DIN934螺母等效于ISO4032；除个别规格外，也可以等效于GB/T 6170。
德标原文档：DIN934-1987.PDF
替代标准：ISO4032-2012.PDF

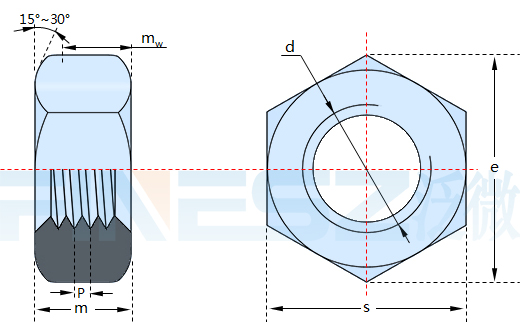

图纸：
尺寸表（单位：MM)
| 螺纹尺寸d | ||
| P | 螺距 | 粗牙 |
| 细牙1 | ||
| 细牙2 | ||
| m | 最大值=公称 | |
| 最小值 | ||
| mw | 最小值 | |
| s | 最大值=公称 | |
| 最小值 | ||
| e ① | 最小值 | |
| * | ||
| 千件重(钢制)≈kg | ||
| M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | M110 | M125 | M140 | M160 |
| 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / | / | / | / | / |
| / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | / | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1.25 | 1.25 | / | / | 2 | 1.5 | 2 | / | / | / | / | / | / | / | / | / | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | / | / |
| 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | 38 | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 |
| 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | 40.4 | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 |
| 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 | 2.32 | 2.96 | 3.76 | 4.16 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.4 | 11.9 | 13.5 | 14.2 | 16.6 | 18.2 | 19.8 | 21.9 | 23.5 | 25.9 | 27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 | 68.6 | 78.2 | 87.8 | 100 |
| 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 |
| 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.7 | 12.7 | 16.7 | 18.7 | 21.7 | 23.7 | 26.2 | 29.2 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 103 | 108 | 113 | 118 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 |
| 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.1 | 12.1 | 14.4 | 18.9 | 21.1 | 24.5 | 26.8 | 29.6 | 33 | 35 | 39.6 | 45.2 | 50.9 | 55.4 | 60.8 | 66.4 | 71.3 | 77 | 82.6 | 88.3 | 93.6 | 99.2 | 105 | 111 | 116 | 122 | 127 | 133 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 170 | 196 | 216 | 248 |
| 0.03 | 0.05 | 0.06 | 0.08 | 0.1 | 0.14 | 0.2 | 0.28 | 0.72 | 0.38 | 0.51 | 0.81 | 1.23 | 2.5 | 3.12 | 5.2 | 11.6 | 17.3 | 25 | 33.3 | 49.4 | 64.4 | 79 | 110 | 165 | 223 | 288 | 393 | 502 | 652 | 800 | 977 | 1220 | 1420 | 1690 | 1980 | 2300 | 2670 | 3040 | 3440 | 3930 | 4930 | 6820 | 8200 | 13000 | 17500 | 26500 |
| 材料 | 钢 | 不锈钢 | 有色金属 | |
| 通用要求 | DIN 267 part 1 | |||
| 螺纹 | 公差 | 6H | ||
| 标准 | DIN 13 part 12,DIN 13 part 15 | |||
| 机械性能 | 等级 | ≤ M2.5：6 M3 ~ M39： 6，8，10 ＞M39：按协议 |
≤ M39：A2-70，A4-70 ＞M39：按协议 |
按协议 |
| 标准 | DIN 267 part 4 | DIN 267 part 11 | DIN 267 part 18 | |
| 公差 | 产品等级 | ≤ M16：A ＞M16：B |
||
| 标准 | ISO 4759 part 1 | |||
| 表面处理 | - | 不经处理 | blank | blank |
| - | 电镀 DIN 267 part 9① 热浸镀锌 DIN 267 part 10 DIN 267 part 21 applies to the expansion test |
|||
| 表面粗糙度 | DIN 267 part 2 | |||
| 表面缺陷 | DIN 267 part 20 | |||
| 验收及包装 | DIN 267 part 5 | |||
| 备注 | ① Where a protective coating is applied e.g. an electroplated coating comflying with DIN 267 part 9, depending on the coating thickness required, it may be necessary, particularly in the case of tolerance class 6H nuts, to select a larger fundamental deviation than that assigned to the H position (see DIN 267 part 9 ). This, however, might impair the resistance of the bolt / nut assembly to stripping. | |||
